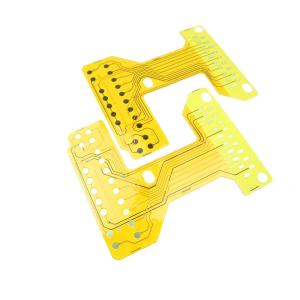

2Oz 0.4mm Polyimide Flexible PCBs Printed Circuit Board Manufacturer

Product Categories

Guangzhou Highleap Electronic Co.,Ltd.

Contact Now

Name: 2Oz 04mm Polyimide Flexible PCBs Printed Circuit Board Manufacturer
Brand: HighLeap
Price: 1 USD

Brand Name : HighLeap

Model Number : Flex Pcb

Certification : ISO9001/Iso14001/CE/ROHS

Place of Origin : China

MOQ : 1pcs

Price : USD 1-30 piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 piece per week

Delivery Time : 1-15 working days

Packaging Details : Vacuum Package

Product name : Circuit Board

Copper Thickness : 0.5oz/1oz/2oz custom

Surface Finishing : OSP ENIG custom

Certificate : CE

Board Thickness : 0.1mm-0.5mm

Layer : 1-6Layer\

Contact Now

Hot Sales 2Oz 0.4mm Polyimide Flexible PCBs Printed Circuit Board Service Manufacturers

Article	Description	Capability
Material	Laminate materials	FR4, High TG FR4, High Frequency, Alum, FPC...
Board Cutting	Number of layers	1-48
Board Cutting	Min.thickness for inner layers (Cu thickness are excluded)	0.003”(0.07mm)
Board Thickness	Standard	(0.1-4mm±10%)
	Min.	Single/Double:0.008±0.004”
		4layer:0.01±0.008”
		8layer:0.01±0.008”
	Bow and twist	no more than 7/1000
Copper Weight	Outer Cu weight	0.5-4 0z
Copper Weight	Inner Cu weight	0.5-3 0z
Drilling	Min size	0.0078”(0.2mm)
	Drill deviation	±0.002″(0.05mm)
	PTH hole tolerance	±0.002″(0.005mm)
	NPTH hole tolerance	±0.002″(0.005mm)
Solder Mask	Color	Green,white,black,red,blue…
	Min solder mask clearanace	0.003″(0.07mm)
	Thickness	(0.012*0.017mm)
Silkscreen	Color	white,black,yellow,blue…
Silkscreen	Min size	0.006″(0.15mm)
Max Size of Finish Board	700*460mm
Surface Finish	HASL,ENIG,immersion silver,immersion tin,OSP…
PCB Outline	Square,circle,irregular(with jigs)
Package	QFN,BGA,SSOP,PLCC,LGA

About HighLeap Electronic

Advantages of HighLeap Electronic

Our PCB Equipments

Our Certifications

2Oz 0.4mm Polyimide Flexible PCBs Printed Circuit Board Manufacturer
