Name: Fpc Production Assembly Flex Pcb Manufacturer Flexible Printed Circuit Board
Brand: HighLeap
Price: 1 USD

Brand Name : HighLeap

Model Number : Flex Pcb

Certification : ISO9001/Iso14001/CE/ROHS

Place of Origin : China

MOQ : 1pcs

Price : USD 1-30 piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 piece per week

Delivery Time : 1-15 working days

Packaging Details : Vacuum Package

Product name : Circuit Board

Copper Thickness : 0.5oz/1oz/2oz custom

Surface Finishing : OSP ENIG custom

Certificate : CE

Board Thickness : 0.1mm-0.5mm

Layer : 1-6Layer\

Contact Now

Hot Sales Fpc Production Assembly Flex Pcb Manufacturer Flexible Printed Circuit Board Service Manufacturers

FPC cable ( Flexible Printed Circuit ) Specifications
Layer	1－6layer
FPC size(max/min)	Min: 10x45mm Max:250x1200mm
Thickness	0.050mm—0.2mm
Through Hole diameter(Max)	6.5mm
Through hole size(min)	0.2mm
Through hole tolerance	±0.025mm
Hole copper thickness	Min8μm Max38μm
Min line width/space	0.04/0.04 mm
Etching Tolerance	±20％
The accuracy of the pattern on the hole	±2mil
Punching size(max)	φ3.175mm
Punching size(min)	φ2.0mm
Punching aperture Thickness(Max)	0.2mm
Thermosetting inks tolerance	±0.2mm
Green oil(Min)	0.1mm
Solder pad(min)	8mil*8mil
Solder pad distance(Min)	8mil
tolerance(Min)	±0.1mm
Available Laminates Material	Pl. PET. FR4-Pl
Copper foil thickness	12um, 18um, 35um, 70um

About HighLeap Electronic

Advantages of HighLeap Electronic

Our PCB Equipments

Our Certifications

Fpc Production Assembly Flex Pcb Manufacturer Flexible Printed Circuit Board

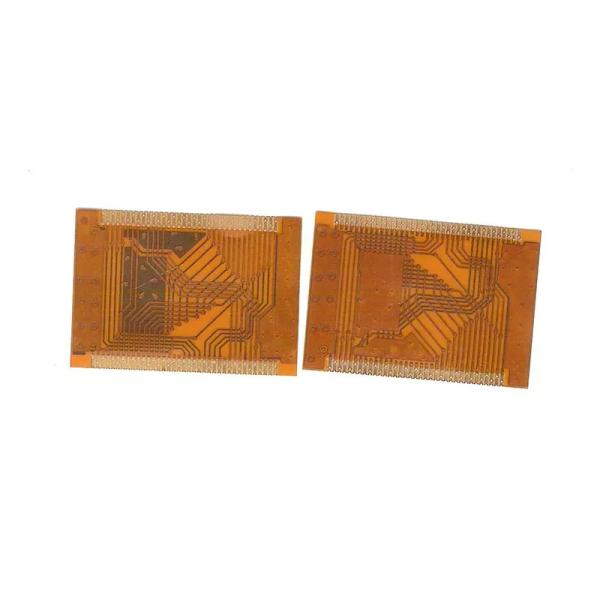

Fpc Production Assembly Flex Pcb Manufacturer Flexible Printed Circuit Board Images
